In this program you will get a chance to use recursion to solve a
problem that could not be done just as easily or more efficiently with
a loop. It is possible to solve this problem without recursion, but it
would somewhat more complicated, and would result in the same
big-O space and time requirements as a recursive solution.
Depth-first search (DFS) is an algorithm for searching in non-linear data
structures. There are a few different ways to implement DFS, but here
you're going to implement a recursive DFS as part of a Minesweeper game.
We'll discuss more about how to do this recursive
search later.
The code for this assignment uses a few features of Java we haven't
used in this course before. The new feature you will be using in your
code is 2D
arrays (section 7.6 of the textbook).
The other features listed in this paragraph are used in the starter code we gave
you for the GUI. You will not need to write code using them yourself to
complete the assignment, and they are not part of the required
material for the course (e.g., they won't be on the exams), however,
you may want to read parts of the starter code to help you better understand how the
code you are writing is used by the GUI code. These new features are: inner classes (Section 10.5),
inner classes used as Listeners (part of the Java GUI system)
(Section 10.7.2), and anonymous inner classes.
Event handling in general is covered in Section 10.7.
Because this program has a GUI, the Vocareum environment
is configured so you can open up a Linux desktop, like we had for pa1,
so you can test the complete program.
Note: the blurbs below do not completely describe what each of these
classes are, or how they fit together. For
more details on that, see the section on the class design.
The starter files we are providing for you on Vocareum are listed here.
The files in bold below are ones you
create and/or modify and submit.
The files are:
VisibleField.java
Data representing what's visible about the minefield and other data and methods for the game.
The interface has been specified for you; you need to complete the
implementation of this class.
MineField.java
The hidden minefield.
The interface has been specified for you; you need to complete the
implementation of this class.
MineSweeper.java The main program.
We have written this class for you. Do not change it.
MineSweeperFixed.java A version of the program that
uses a hard-coded mine field instead of randomly placed mines. (For
testing purposes.) You may modify this file (e.g., to add more test
mine field configurations) or not; we won't be
grading it.
GameBoardPanel.java The GUI for the game.
We have written this class for you. Do not change it.
images/facesmile.gif Image used by the program.
images/facedead.gif Image used by the program.
MineFieldTester.java and
VisibleFieldTester.java Test programs you
may create to test your two classes. You are not required to submit
these files. These are described further in the section on Development Hints.
"I certify that the work submitted for this assignment does not
violate USC's student conduct code. In particular, the work is my
own, not a collaboration, and does not involve code created by other
people or AI software, except for the resources explicitly
mentioned in the CS 455 Course Syllabus. And I did not share my
solution or parts of it with other students in the course."
Write the main logic of a program to play the game Minesweeper. To
keep the scope of this assignment reasonable, we have created the
object-oriented design for this program, and have implemented the GUI
for you.
Minesweeper is a game where mines are hidden in various random locations in a
two-dimensional minefield. The player has to figure out where all the
mines are without exploding a mine. They do this by repeatedly
uncovering locations, and guessing mine locations, until
they uncover all of the non-mine locations
(win) or they explode a mine (lose). This is more than a game of
chance, because when a non-mine square is
uncovered it displays the number of mines adjacent to that square.
The player can use that information to figure out where the mines are (or at
least narrow down their locations).
Step 1. Play the game yourself!
The rest of this section describes the game in somewhat gory detail.
You do not need to know all of the details (e.g., of exactly how the
display changes) to actually play the game yourself.
And the first
part of your homework is to go out and play several games of
minesweeper to get an idea of how it works. If you have never played
before, you probably want to start out with beginner mode (9 x 9 field,
10 mines).
There are many versions of this game. It's been on Windows
forever, and probably is still. Here is a free web-based version. There
are also a few free smart-phone minesweeper apps. Just don't get hooked,
like I did, or you'll never get to your assignment!
Before you try out the version of the game linked above, note that the following settings make the game
work closest to the one you will be implementing. On the
Options menu,
uncheck Opening Move
uncheck Area Open
don't change the other settings
(hovering over each of these options explains what they do)
Once you change these settings the only very minor difference between
ours and the web version (besides look and feel, and no menu options)
is the one online will display negative numbers in the number of guesses
count-down if you guess more than the number of mines that are on the
board, while ours goes down to 0 and then stays there on subsequent
guesses (that behavior is in the GameBoardPanel.java)
Now, we'll proceed with the detailed explanation of the game-play...
Uncovering a square.
The player uncovers a square with a left-click on a button at that location.
If it's non-mine location, what shows up at
that square is the number of adjacent hidden mines (a number 1 - 8
because diagonals are considered adjacent). If there are no mines adjacent to
this square, it displays no number.
If the player uncovers a mine instead, it explodes, and they lose the game.

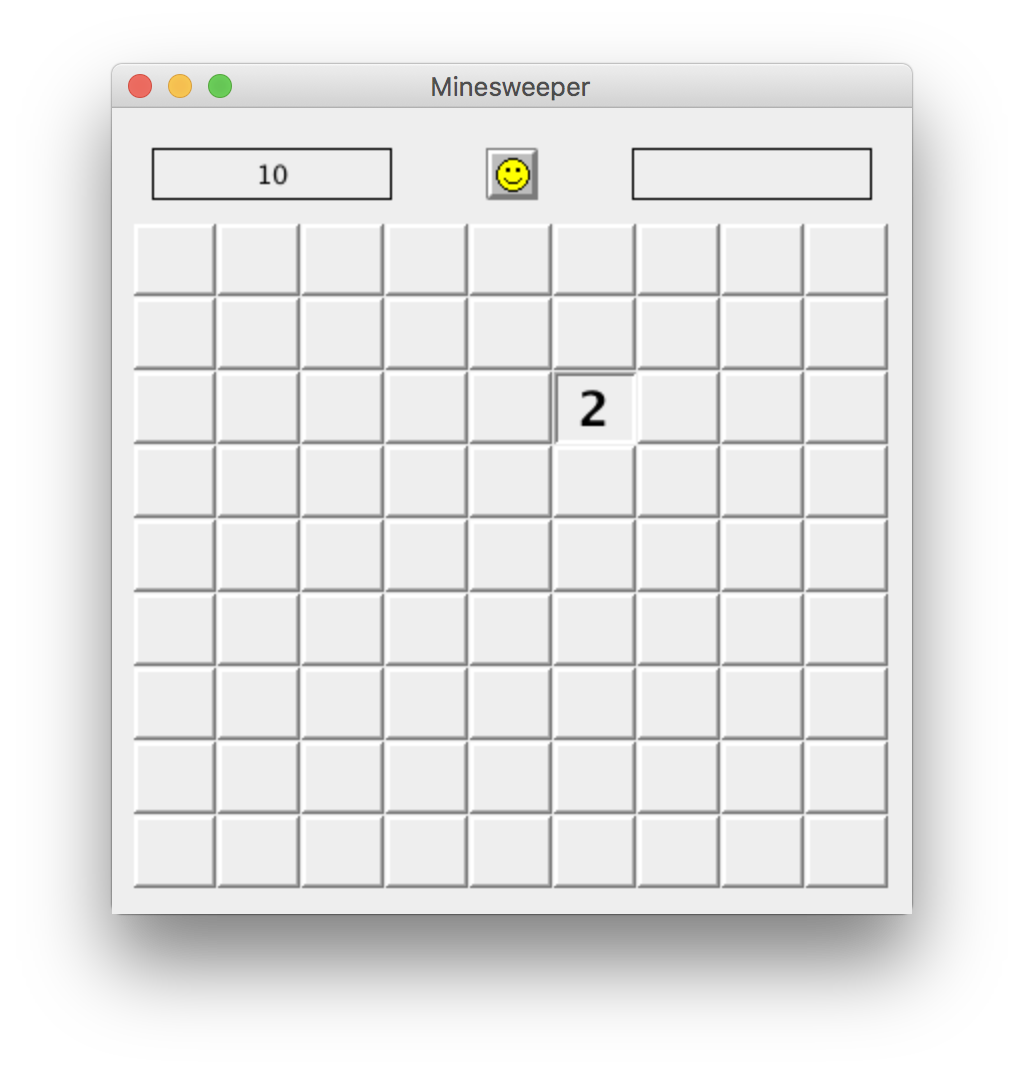

A game after player opens the first square. It's showing that two of the squares
surrounding that square have mines in them. Our game has a 9 x 9
field, with 10 mines.
Automatic opening of empty regions.
To make it less tedious for the user, when they open a square that has
no adjacent mines, the game automatically opens all the squares in
that region that aren't adjacent to mines until it gets to the
boundary of the field, or squares that are adjacent to other mines.
Here is an example that
illustrates the effect:
The player only clicked once, at the location: 2nd row, 7th column.
It wasn't adjacent to any mines, so
the program automatically opened the rest of the squares shown.
(This automatic opening of parts of the field is where your recursive
search is going to come into play.)
Guessing a mine location.
Based on the opened squares, if the player can then deduce the location of
a mine, they can mark that unopened location as a mine-guess
(right-click), to help them figure out where more mines are and are
not. (In our interface, the mine guess is denoted by a yellow square.)
Marking what may be a mine location.
Usually a player would guess a mine location only when they could
actually deduce that a mine goes there. However, there is a third
state a covered mine location can have, and that's to just mark it
with a question mark, to show that it's something the player is thinking
might be a mine, but aren't sure about. Marking a location this way
does not affect the number of mine guesses.
If a mine is covered, one right click puts it as a mine guess
(yellow), and another right click puts it as a question (shows ?, not
yellow), and a third right click puts it back to the regular covered
state.

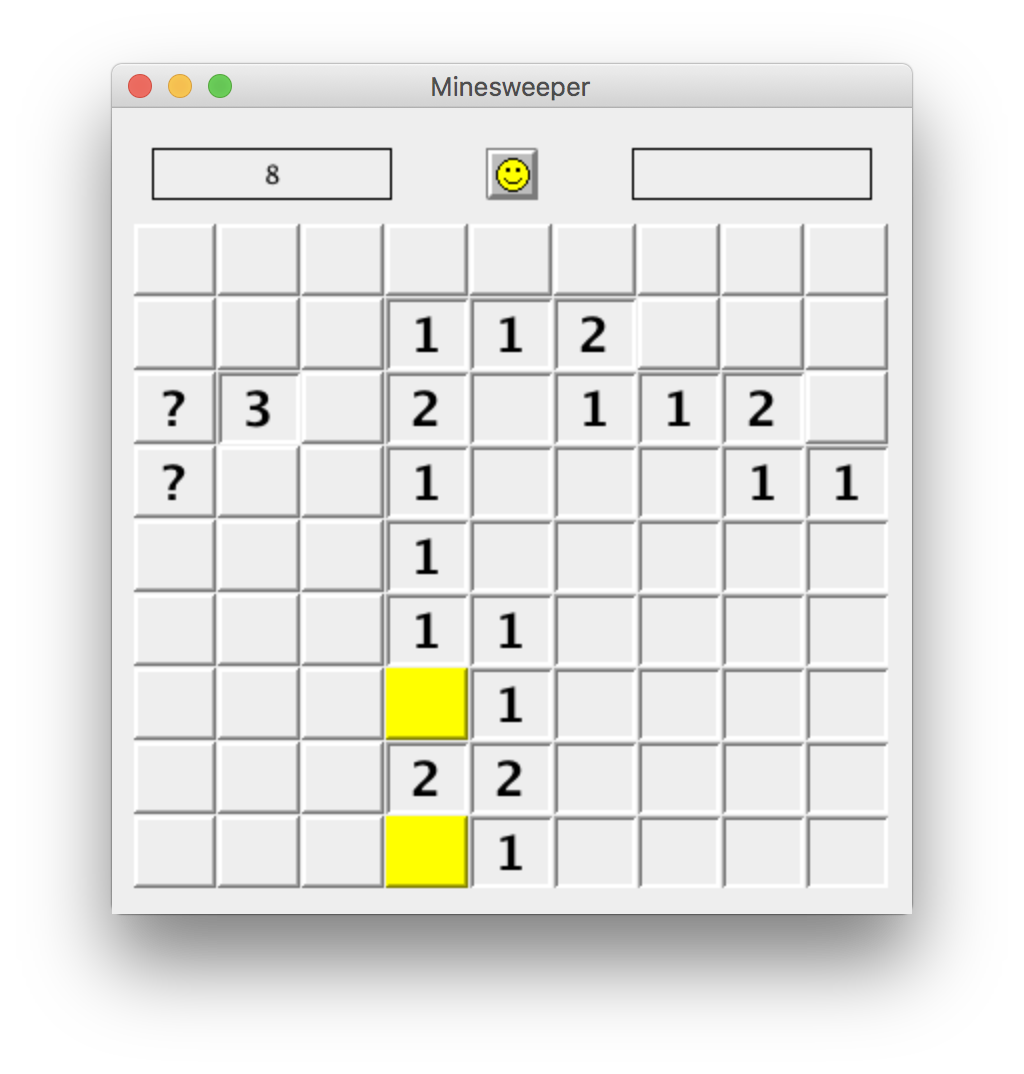

This player has made a few guesses (yellow) and marked a few spots
they are unsure of with a question mark.
The large empty area (shown as pushed in buttons), was automatically
opened by the program when the player earlier clicked on just one of those
empty spots. The top left shows the number of mines left to guess.
Number of mines left display. When the game starts
the number of mines still to be guessed is displayed at the upper left
of the window, so the user knows how close they are to finishing. Guessing
a mine (i.e., marking that location, as described above), will reduce
that number by one whether the guess was correct or not. Although a user can guess more mines than there
actually are, the display only goes down to zero (no negative number
displayed). Note: some versions of the game out there let the
displayed number go to negative, but our version will not.
The user
can win without it reaching zero, because the
win-condition is to open all the non-mine locations on
the board, not
to guess any particular number of mines. The next diagram illustrates
this situation.
Winning game display.
When a player successfully opens all of the non-mine locations, the
field display changes to show where the other mines are (it
shows them as guesses, in yellow). I.e., these would be any unopened
squares that weren't already yellow. The top middle of the window will show the happy face, and a
message about winning will appear on the upper right of the window.

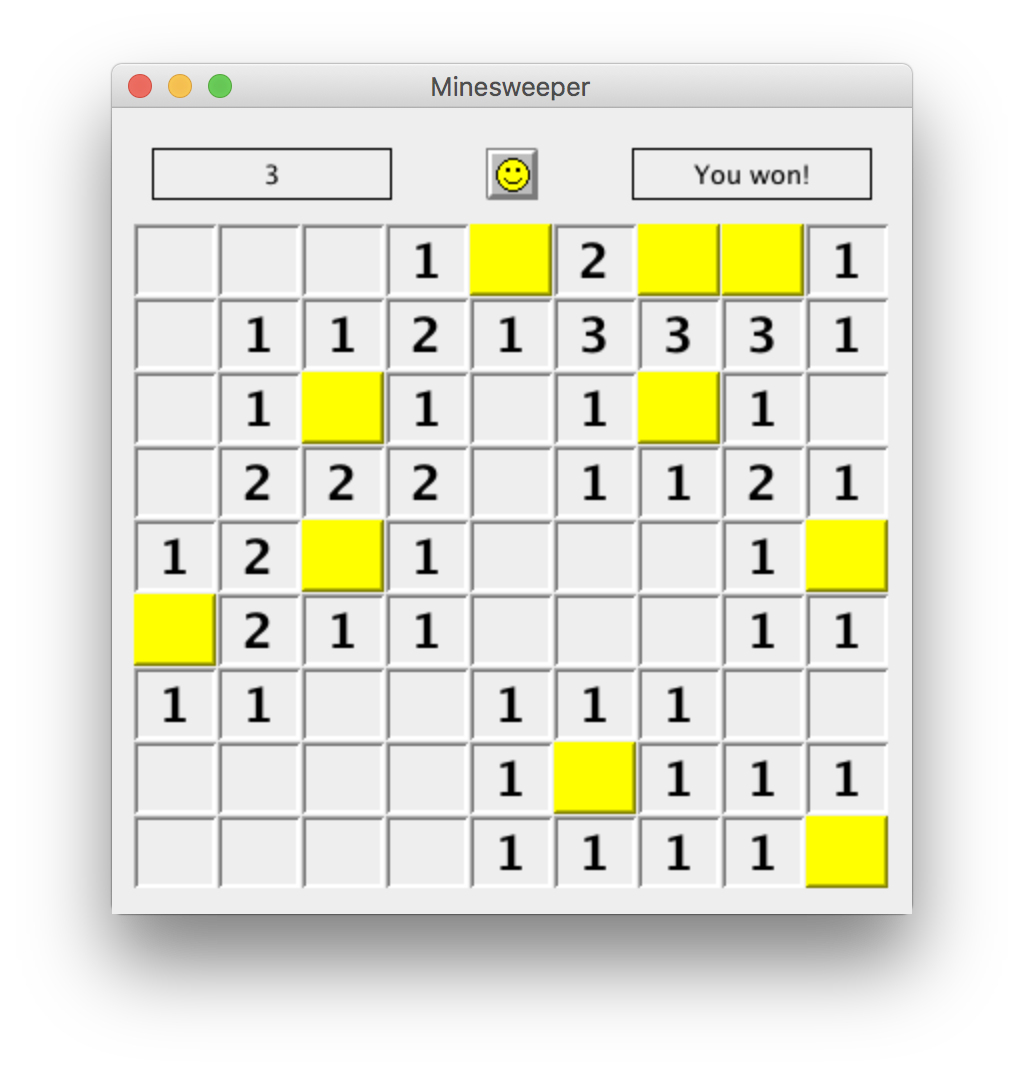

This player just won the game (indicated by "You won!" message at
upper right) . The number of guesses made was 7
(upper left display shows 10 - 7 = 3), but
once they opened all the 71 (9*9 - 10) non-mine squares they won.
It shows 10 yellow squares, because on a win, all of the squares with mines
are shown as guesses.
Losing game display.
When a player opens a mine location, that mine explodes, and they lose
the game. The exploded mine is shown by a
red square. Any previously made incorrect guesses are shown with an X
though them, the correctly guessed mine locations are still shown as
guesses (yellow), and the other unopened mines are
shown as "mines" (a black square, in our implementation).
The top
middle of the window will show the sad face, and a message about
losing will appear on the upper right of the window.

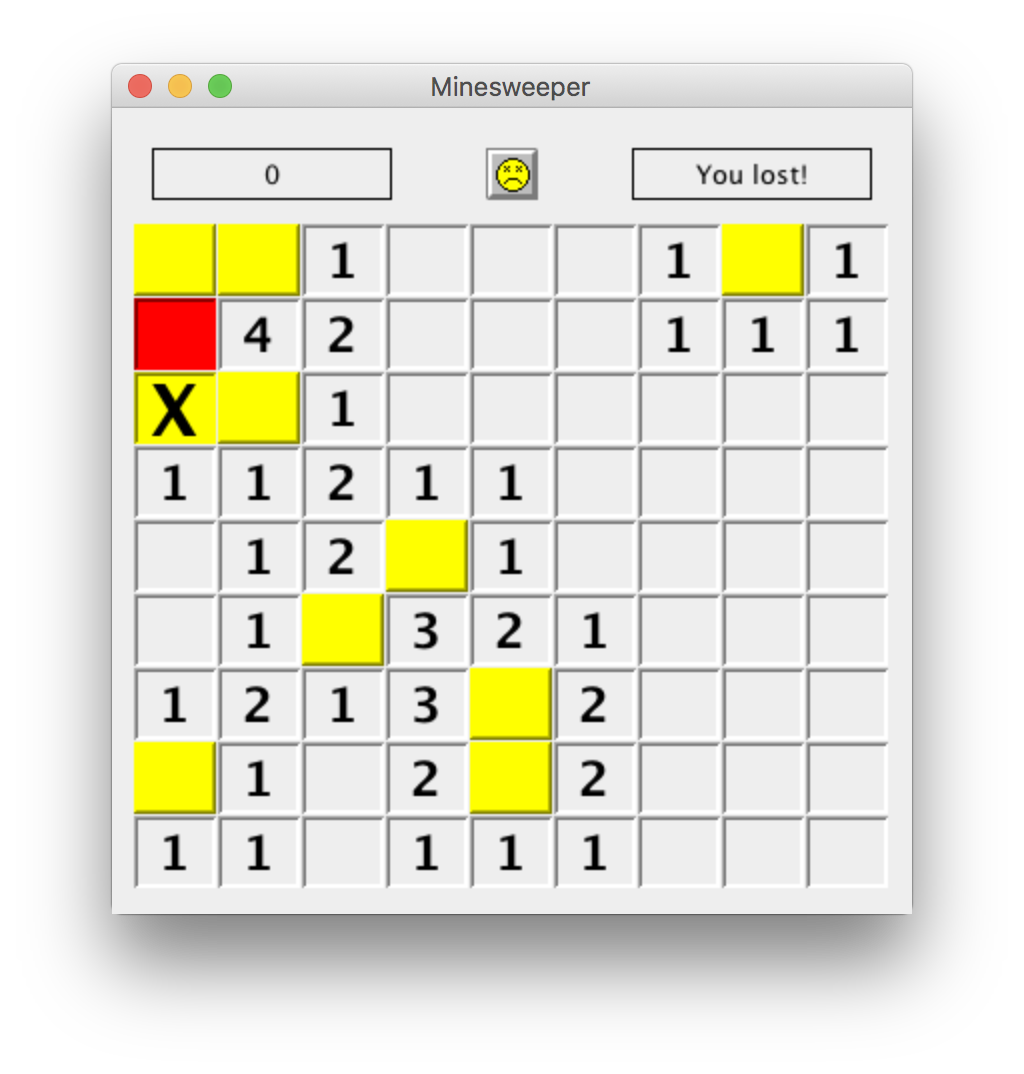

This player just lost the game at the very end. They guessed 9
squares correctly, the last one incorrectly, and then opened the last
unopened square, which was a mine.
The red one is the mine they clicked
on, the X is the incorrect guess.
Another game just lost.
The black squares are mines that the player hadn't yet guessed at the point
that they lost. The X's are incorrect guesses. The's 3 other yellow ones
were the correct guesses. The red square is the exploded mine.
Playing the game again.
The user can play another game by clicking on the happy/sad face. It
goes back to a happy face at the start of the new game, the game
board shows all squares as unopened, and shows the original number of mines
in the display of how many left to guess (top left).
Initial mine placement.
On each game played, the mine locations are chosen at random, thus will
be different for each game.
The game works such that the first square opened is guaranteed
not to be a mine. To get that behavior the program can't choose the mine
locations until the user opens the first square.
Clicking on an already-opened square. In our
game clicking on a square that has already been opened will do
nothing -- this is different than some other versions of the game you can play. (In
other versions of the game clicking on an open square that has a
number on it is a shortcut for opening all the neighboring non-guessed
squares.)
We are giving you the overall design to use, as well a lot of the
code, so you should read on before you dive into this problem.
We have done the class design for you. Normally in a GUI program it's
desirable to separate the part of the program that does the
computation and stores data from the part of the program dealing with
the display and input. This organization is called the
Model-View-Controller design pattern. This way it's easier to change
the look and feel of the program without having to touch the code that
does the computation: e.g., we could even use our MineField and
VisibleField classes,
below, unchanged, with a non-graphical, console-based interface. The
design given here has that separation. The part you are implementing,
MineField and VisibleField, comprises
the Model.
All of the programming assignments you have had so far have had a version
of this design pattern. In PA1
the computation happened in SpiralGenerator, and display
of the computation was in SpiralComponent.
In PA2, the
BookshelfKeeper, and Bookshelf classes handled
the data and computation, and all I/O (including error checking) was
handled in BookshelfKeeperProg.

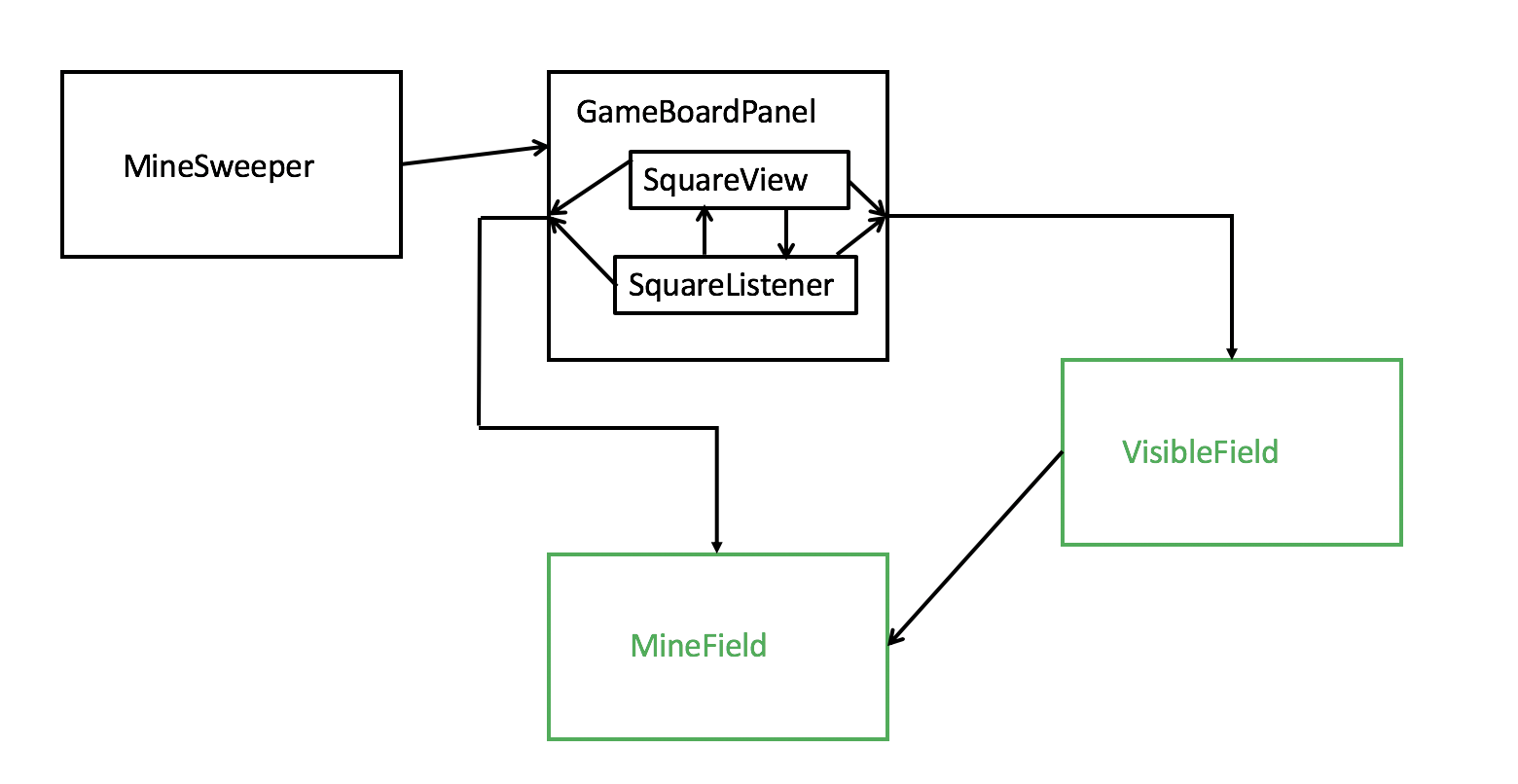

The simple UML (Unified Modeling Language) class diagram below shows these
relationships between the classes in our design for the minesweeper program. An arrow from class A to class B means
that class A depends on class B (or put other ways, "has to know
about", or "uses"). To keep it simpler, we showed the inner classes as
contained inside their enclosing class. The classes in green are the
ones you are implementing for the assignment.
Here is an overview of this design, stating which classes are
responsible for which part of the program, and what the dependencies
are between the various classes:
GameBoardPanel
This JPanel
subclass contains all the display elements and listeners in the
program. It has a two-dimensional array of SquareView objects for
all of the buttons on the minefield board.
During the normal mode of operation, it creates the MineField
and VisibleField objects.
(So it depends on those other two classes.)
This class has already been completed for you.
This is the GUI for the program: it contains the display and
controls for a game, and the minefield display (grid of "buttons").
It's the View and Controller in the MVC design pattern, whereas the
Model consists of the the VisibleField and MineField. You do not
need to understand every line of code in GameBoardPanel to complete
this assignment; a lot of it is minutiae of setting up and updating Java Swing
components. However, it will be helpful if you know when and why
the various methods you are implementing get called from methods in
this class and its inner classes. So here's more about its design. It has two named inner classes:
SquareView. The view class for a single square. There is
one of these objects for each square on the board. Although it looks like a button,
this is actually a JLabel component, because it's easier to use a JLabel to
respond to both left and right clicks.
It also uses your VisibleField accessors to find out the state of the square
it's displaying.
We wrote this class for you.
SquareListener. The controller class for a single square.
There is one for each square on the board. Its one public method,
mouseClicked, detects if it was a left or right click,
and dispatches it to its private method openSquare (left
click),
or changeGuessStatus (right click).
This class depends on the SquareView, GameBoardPanel, MineField, and the
VisibleField.
We wrote this class for you. Listeners are described in a little more detail below.
While there is a view and controller for each individual square, the
design has no separate "Square" class to model a square. The state of all of the
squares is in the VisibleField class. The view and controller
for a square know their own location; they call
VisibleField methods, passing in their location to specify their square.
The listener for the other button on the board (the smiley face, to
start a new game) is an anonymous inner class. That means it
doesn't have a name, because it's just used in one place. It's in the
setupTopPanel method of the GameBoardPanel class.
MineSweeper class. This class has
main. It sets up the frame and GameBoardPanel.
It depends on the GameBoardPanel.
MineField class.
Has locations of the mines for a game. This is the "hidden" part of the minefield.
This class is mutable, because we sometimes need to change it
once it's created. Its mutators are:
populateMineField. The first time
the user clicks on a square on the board, this is called to place
the random hidden mines, preventing a mine from going into the just-clicked
location.
resetEmpty. Put the minefield
into its starting state (before that first click).
This class does no I/O.
Doesn't depend on any other classes.
VisibleField class.
This is the data that's being displayed at any one point in the game
(i.e., visible field, because it's what the user can see about the
minefield). It does no drawing on the screen itself. Client can
call getStatus(row, col) for any square to find out the current
display status. It actually has data about
the whole current state of the game, including the underlying mine
field (getMineField()). Other accessors related to game status:
numMinesLeft(), isGameOver(). It also has mutators related to moves
the player could do (resetGameDisplay(), cycleGuess(), uncover()),
and changes the game state accordingly.
It, along with the MineField (accessible in mineField instance
variable), forms the Model for the game application, whereas
GameBoardPanel is the View and Controller, in the MVC design
pattern.
That MineField can be accessed (or modified) from outside this class
via the getMineField accessor.
This class does no I/O. Depends on the MineField class.
Note: In this design the GameBoardPanel and VisibleField in a game must
share the same MineField object, so that when the GameBoardPanel mutates
that MineField the VisibleField can see those changes.
That means VisibleField should not
make a defensive copy of the MineField passed into the constructor
or returned from the getMineField method.
What's a listener?A listener is a GUI component that
has a function that gets called automatically whenever a certain user action happens
(e.g., a mouse click or a key pressed). It's usually associated with
a particular component: e.g., the component might be a button, and
the listener has the code that gets executed when that button is
pressed). The application programmer fills in the body of this
function for a subclass of the appropriate Java listener class.
Let's go through what happens with the classes for a particular

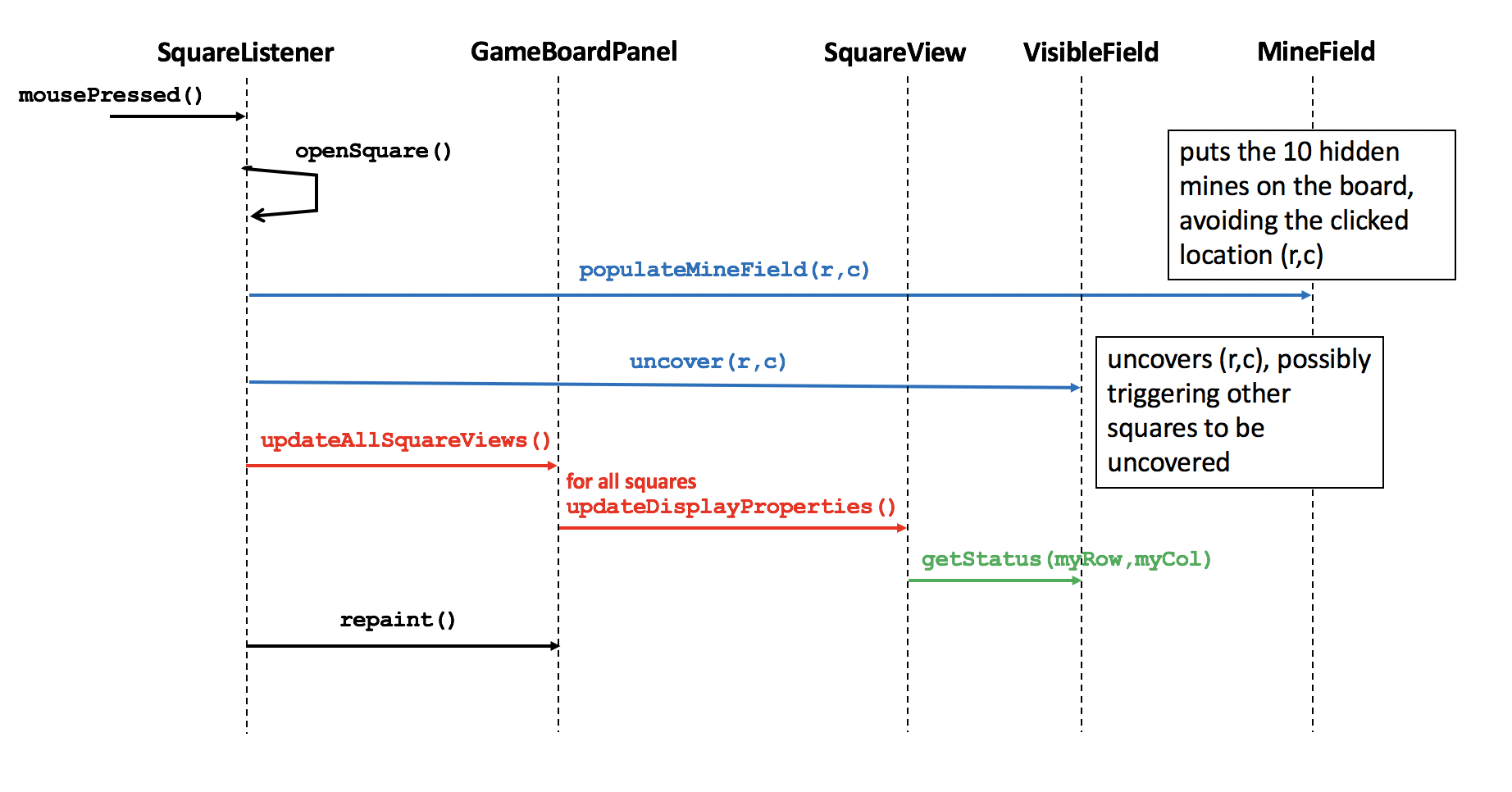

action. The following is another type of UML diagram, called a
sequence diagram, that shows the message-passing (aka, method calls)
between objects to carry out a particular action. You
read the diagram from top to bottom. The use-case being described in
this sequence diagram is that the user left-clicks a minefield square for the first
time in a game.
The last thing that happens in this sequence is
the window being updated, with the call to repaint).
Use case: user opens the first square.
We can relate this specific diagram to the general idea of communication between
classes in the MVC pattern:
The blue
steps shows the Controller updating the Model
The red
steps shows the Controller telling the View that the Model
changed.
The green
steps show the View asking the Model for its updated state.
And the parts in the black boxes on the right side of the diagram are annotations
describing what happens in the Model (i.e., the part you are
implementing).
Note that the populateMineField step of this sequence does
not happen for a fixed minefield (discussed further under Development Hints). You can see the exact code corresponding to this
sequence in SquareListener's openSquare method (in the
GameBoardPanel.java file).
You can use a straightforward technique to choose random mine
locations. That is, choose a random location, and if that location already
has a mine on it, keep choosing another random location until you get a
location that doesn't have a mine on it. Because of a
precondition on the 3-parameter MineField constructor, that the number
of mines has to be less than one-third of the total number of possible
mine locations, there is a very low probability that choosing
locations this way will result in very many false tries.
You are required to use recursion in your solution to the problem of
finding an open area with no mines in it. As mentioned earlier, you will be using a variation on
depth-first search to do this. More specifically, you will be using
the flood-fill algorithm, which is used in graphics for completely
filling in an enclosed area with a particular color, pixel-by-pixel
(which itself is a specialization of the algorithm for finding
a connected component in a graph). The pseudocode for flood-fill in
this Wikipedia article should give you a good start
for figuring out how to solve this problem applied to minesweeper.
The parts of the article you will need are from the start of the article
through the pseudocode presented in the section, "Stack-based recursive implementation"
(the "stack" mentioned is not explicitly created, but is the
underlying system stack
used in all recursion). The algorithm presented there assumes
4-way connectivity, while, of course, here we have 8-way connectivity.
add necessary information to the README file. A reminder of what
goes in it: This is the place to
document known bugs in your program. That means you should describe
thoroughly any test cases that fail for the the program you are
submitting. (You do not need to include a history of the bugs you
already fixed.) You also use the README to give the grader any other
special information, such as if there is some special way to compile
or run your program. You will also be signing the certification
shown near the top of this document.
Grading rubric (rough breakdown of points):
23% Style / Documentation / Design
6% Use of recursion
73% Correctness, broken down ito:
16% Overall program operation
25% Correctness of MineField class (we'll do a unit test on it)
30% Correctness of VisibleField class (we'll do a unit test on it)
